VTC 1921-IP / VTC1921-C2IP

VTC 1921-IP / VTC1921-C2IP

Intel Atom® x7211RE Telematics IoT Gateway
Slim and Ruggedized Design

  • Main Feature
  • IP67 precision design to resist water and dust
  • Built-in CAN FD, 1 x CAN 2.0B
  • U-blox NEO-M9N onboard
  • Four SIM cards for WWAN modules
  • Smart power management with ignition on/off delay via software
    control and low voltage protection
  • 2 x PoE 802.3 af/at, max. total 30W (VTC1921-C2IP)
  • Certified by CE/FCC/E13 mark/EN50155/EN45545-2

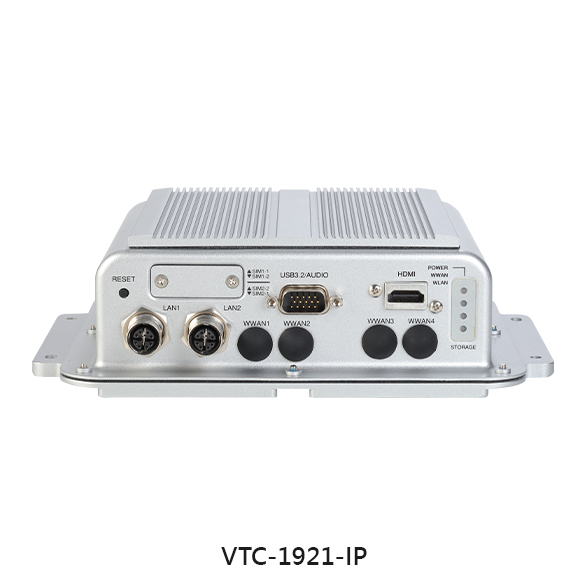

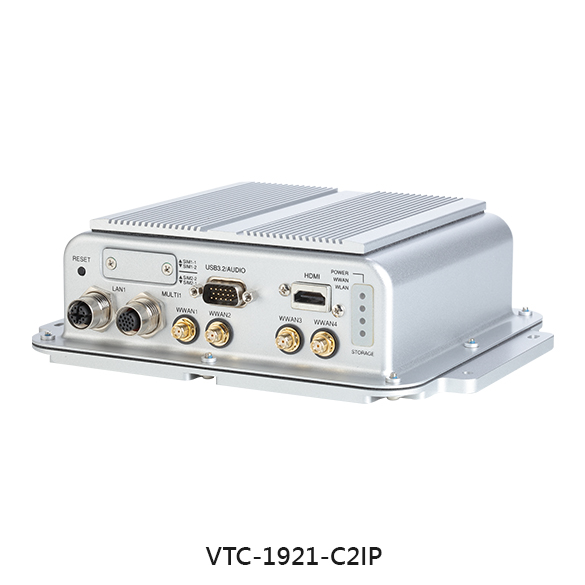

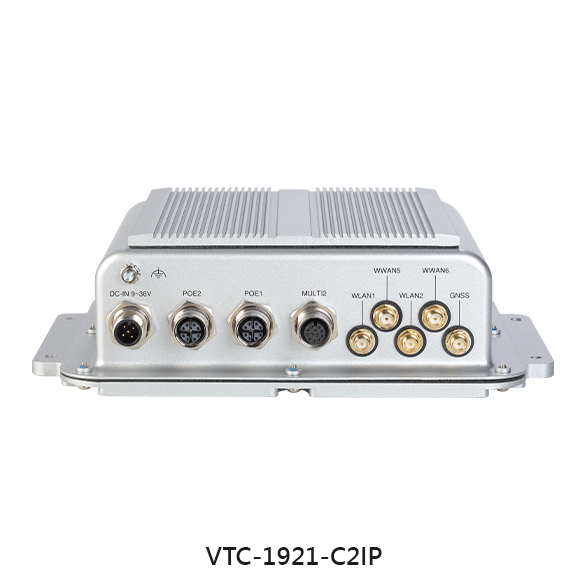

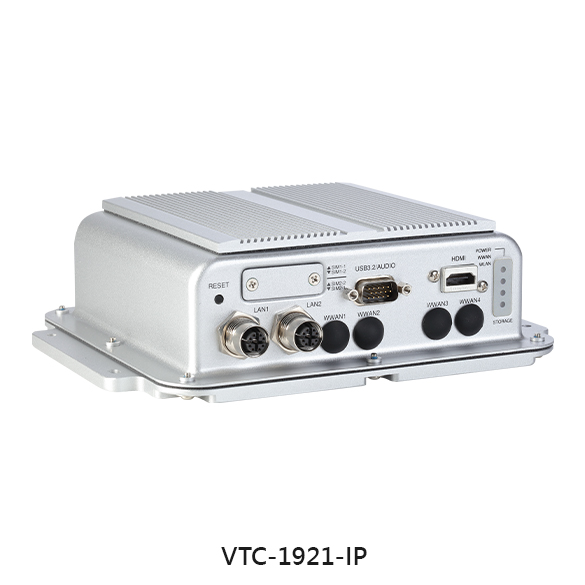

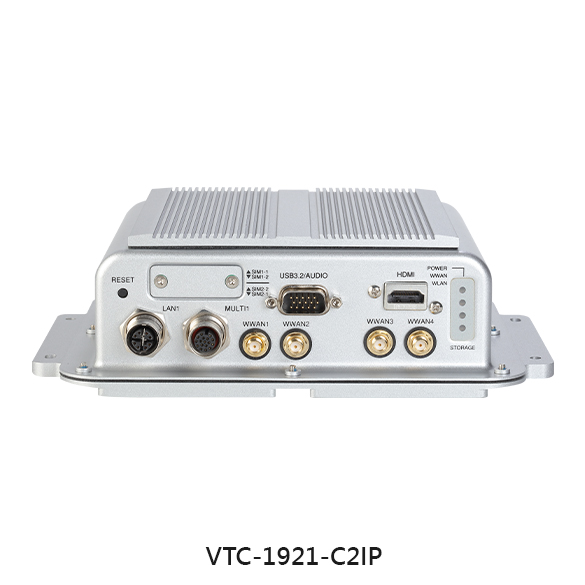

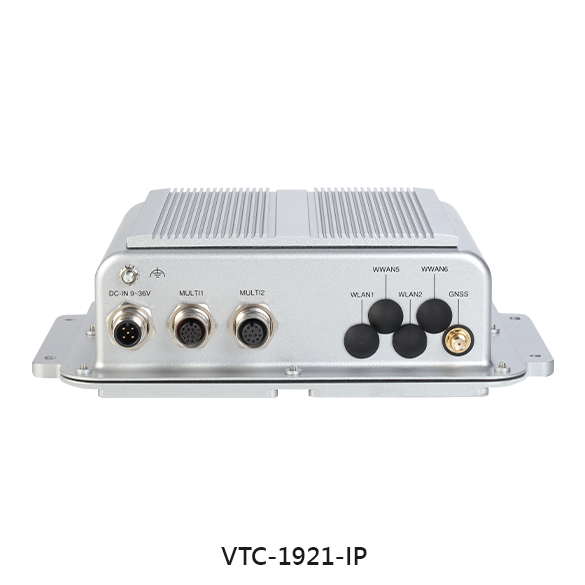

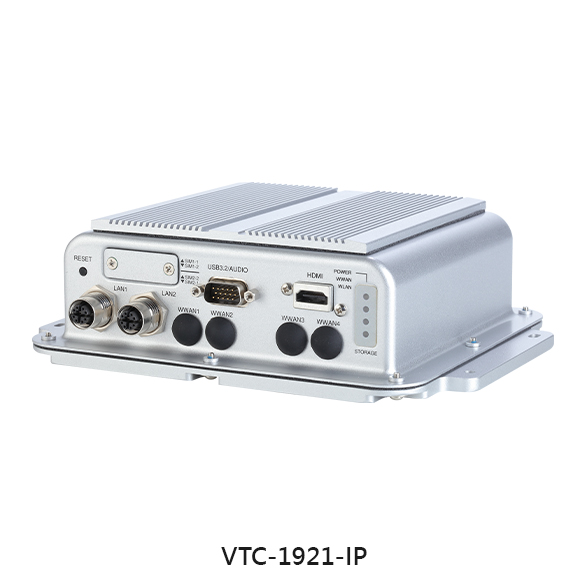

VTC 1921-IP / VTC1921-C2IP

VTC 1921-IP/C2IP, a waterproof entry-level vehicle computer with Intel Atom® x7211RE (1.0GHz) processor, is designed for wet, dirty, and harsh environments. Precision-engineered to IP67 standards, it resists water and dust and complies with the stringent MIL-STD-810H military standard. Its rugged, fanless, and compact design, combined with its lightweight form factor, makes it ideal for vehicles with limited space, without sacrificing performance or features.   VTC 1921-IP/C2IP features onboard CAN FD and CAN 2.0B for vehicle diagnostics and driver behavior management. An advanced GPS receiver supports GPS/Glonass/QZSS/Galileo/Beidou. Additionally, VTC 1921-IP/C2IP offers WLAN and WWAN wireless data and voice connectivity. With four external SIM sockets, it can support better connectivity quality through software optimization. The VTC 1921-C2IP provides dual IEEE8023af/at PoE functions, making it compatible with most PoE devices. Its flexibility allows it to meet various telematics application demands, including IoT gateway, infotainment, fleet management, and dispatching systems.
VTC 1921-IP (P/N: 10V00192102X0) Intel Atom® processor dual core x7211RE, 1.0GHz with 4GB DDR4 SO-DIMM, U-blox M9N GPS onboard, HDMI output, 2 x LAN, 2 x RS-232 (Tx/Rx), 1 x RS-485 (Tx/Rx), 1 x CAN FD, 1 x CAN 2.0B, 4 x DI, 4 x DO, 1 x USB 3.2, 1 x USB 2.0, 1 x Line out/Mic in VTC 1921-C2IP (P/N: 10V00192103X0 ) Intel Atom® processor dual core x7211RE, 1.0GHz with 4GB DDR4 SO-DIMM, U-blox M9N GPS onboard, HDMI output, 1 x LAN, 2 x PoE, 2 x RS-232 (Tx/Rx), 1 x RS-485 (Tx/Rx), 1 x CAN FD, 1 x CAN 2.0B, 4 x DI, 4 x DO, 1 x USB 3.2, 1 x USB 2.0, 1 x Line out/Mic in
