NSA 7145

Dual Intel® Xeon® Processor Scalable Family for Multi-Thread Network Processing
Main Feature
Dual Intel® Xeon® Scalable Processor family
Support up to 512GB of DDR4 2133/2400/2666/2933 ECC & REG memory
Up to 8 slots for PCIe LAN modules
2x 2.5” SATA/ SAS HDD (Swappable)
CRPS (1 + 1) redundant power supply
Support BMC with IPMI 2.0 and out-of-band management
Optional TPM 1.2/ 2.0 module

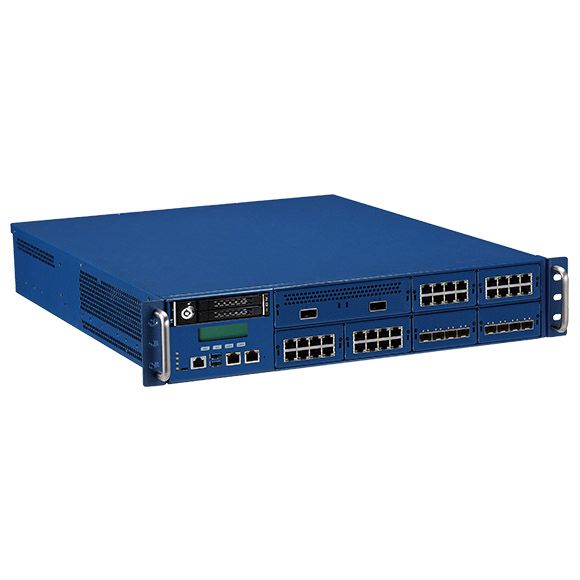

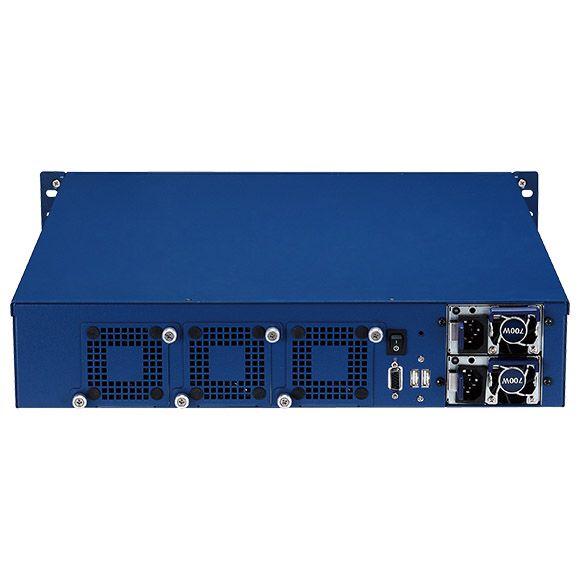

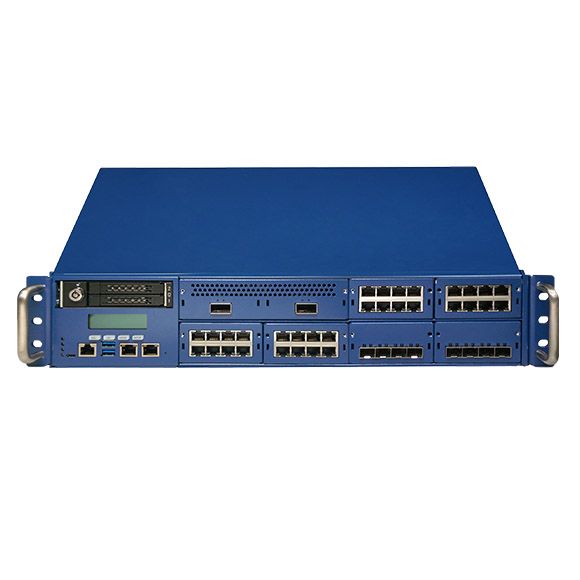

NEXCOM has released the 2U network security appliance NSA 7145 to take on more security workloads and lower energy consumption to contribute to a greener world. Based on Intel Xeon® processor scalable family (codenamed Purley), NEXCOM NSA 7145 features enhancements in computing performance, system responsiveness, I/O throughput and hardware design to safeguard network traffic for both enterprise and telecommunication applications.
Dual Intel® Xeon® Processor Scalable Family for Multi-Thread Network Processing Main Feature Dual Intel® Xeon® Scalable Processor family Support up to 512GB of DDR4 2133/2400/2666/2933 ECC & REG memory Up to 8 slots for PCIe LAN modules 2x 2.5” SATA/ SAS HDD (Swappable)Barebone NSA 7145 (P/N: 10S00714500X0) 2U Intel® Xeon® PCH C621, with LCM, 2 swappable 2.5” HDD tray, 3 swappable system fans, 8 LAN module (NI/NX series) bays, 700W PSU Model P/N Controller Interface Type Port Number Bypass/ Segment Expansion Slot Location Slot NX 140F 10S20140F01X0 XL710-BM1 PCIe x8 4 SFP+ None None All Slot NI 140F 10SK000NI02X0 i350AM4x1 PCIe x8 4 SFP None None All Slot NI 180F 10S10180F01X0 i350AM4x2 PCIe x8 8 SFP None None All Slot NI 180C 10S10180C01X0 i350AM4x2 PCIe x8 8 Copper None None All Slot NI 140C 10S10140C01X0 I350-AM4x1 PCIe x8 4 Copper None None All Slot NV 120F 10S50120F01X0 XXV710-AM2 PCIe x8 2 SPF28 None None All Slot NQ 120F 10S40120F04X0 XL710-BM2 PCIe x8 2 QSFP+ None None All Slot NX 120F 10S20120F00X0 X710-BM2 PCIe x8 2 SFP+ None None All Slot CRPS (1 + 1) redundant power supply Support BMC with IPMI 2.0 and out-of-band management Optional TPM 1.2/ 2.0 module
