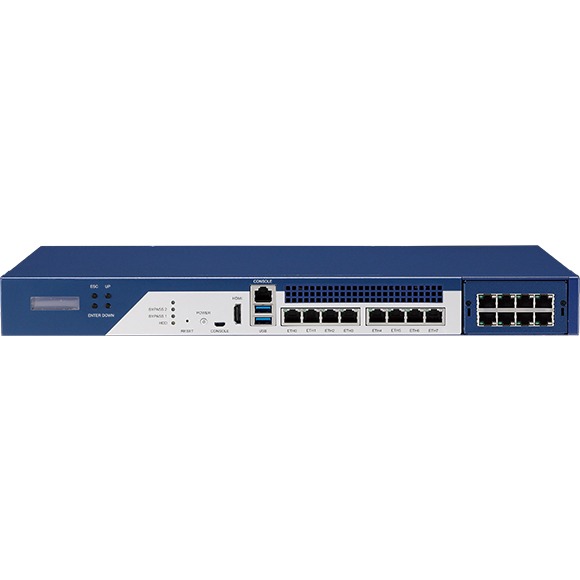

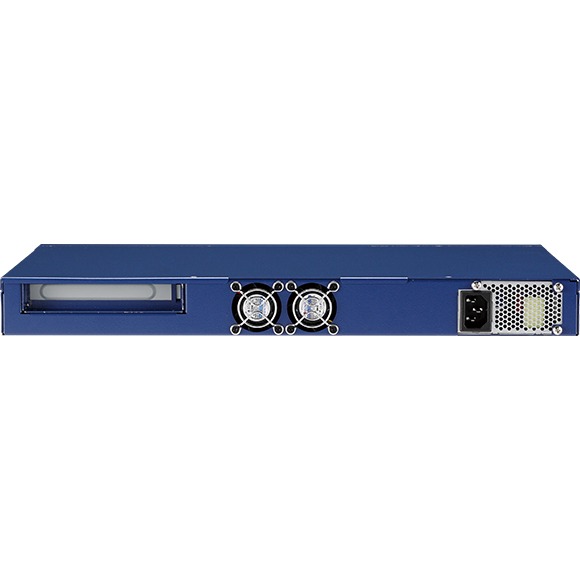

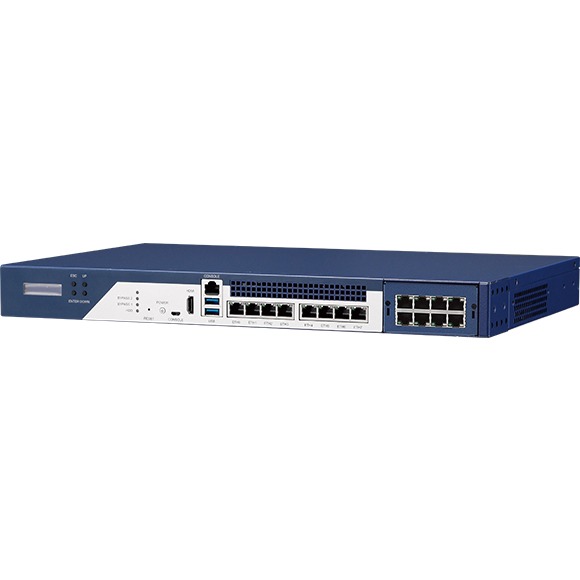

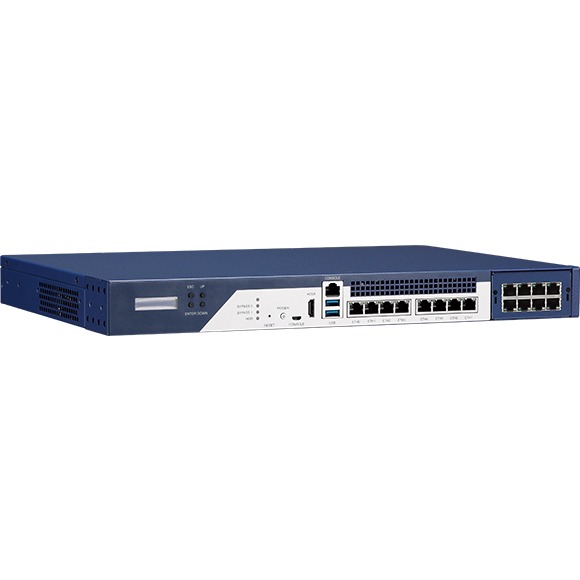

NSA 3180A
1U Rackmount Entry Level Appliance w/ Intel® Coffee Lake Processor (LGA1151), 8 x GbE LANs and 1 x LAN Module
- Main Feature
- Intel® Coffee Lake Processor (LGA1151)
- 2 x DDR4 2666 UDIMM slots
- 2 x 2.5” internal SSD/HDD
- 1 x M.2 2280 M key
- 8 x GbE RJ45 LAN ports
- 1 x LAN module
- 1 x PCIe x8 slot (optional)
- Single power supply
The NSA 3180A is a 1U rackmount entry level security appliance intended for secure workloads and lower energy consumption in contributing to a greener world. Based on the Intel® Coffee Lake product family, NEXCOM’s NSA 3180A features high performance computing, flexible I/O, and cost-effective design in processing traffic for network security applications.
Barebone
NSA 3180A (P/N: 10S00318000X0)
1U w/ Intel® Coffee Lake Processor, 8 x GbE, 1 x LAN module, single PSU
Model P/N Controller Controller PCIe Bypass Speed I/O ports
NI 140C 10S10140C01X0 i350AM4x1 x4 0 1G 4 RJ45
NI 180C 10S10180C01X0 i350AM4x2 x4x4 0 1G 8 RJ45
NI 180F 10S10180F01X0 i350AM4x2 x4x4 0 1G 8 SFP
NI 140F 10SK000NI02X0 i350AM4x1 x4 0 1G 4 SFP
NI 184CX1 10S10184C08X0 I350AM4x2 x8 4 1G 8 RJ45
NX 140F 10S20140F01X0 XL710-BM1 x8 0 10G 4 SFP+
NX 120F 10S20120F00X0 X710-BM2 x8 0 10G 2 SFP+
NV 120F 10S50120F01X0 XXV710-AM2 x8 0 25G 2 SFP28
| Date | Description | Version | OS | Download |
|---|---|---|---|---|
| 2019-09-20 | Quick Guide | Windows | ||
| 2019-09-20 | User Manual | Windows |
