Fanless Rolling Stock Computer with 12/13th Gen Intel® Core™ CPU
Main Feature:
- Powered by 12/13th Gen Intel® Core™ CPU
- Fanless, compact and rugged design
- Designed with DDR5, excellent memory bandwidth, lower latency
- 2 x 2.5” SSD for data integrity (compatible with 15mm disk)
- 5G/Wi-Fi, PoE, 10GbE, daughter board expansion support
- Two video outputs, one VGA and one HDMI
- 4 x Independent 10/100/1000/2500 Mbps PoE 802.3 af/at, total 60W (nROK 7270-AC4)
- Military standard for anti-vibration/shock
- EN 50155, class OT3 conformity
NEXCOM system nROK 7270 accomplishes operational efficiency of public transportation and service. Based on Intel® 12/13th Gen FCLGA1700 socket-type CPU and 4/12-port 802.3 af/at PoE, it provides an integral solution incorporating high computing power. With dual SIM cards per modem support, it allows two SIM cards backup for a better connectivity quality by software. RAID 0, 1 guarantees the safety of data in the 2 x external SSD. With daughter board expansion design, optional for additional 1 x mini-PCIe slot (BOM optional for M.2 Key E) and 2 x M.2 Key B slot, 8-port 1Gbps Ethernet Switch GbE, PoE 802.3af/at, max. 60W, or 2-port 10GbE M12 X-coded, nROK 7270 keeps the flexibility to meet the demand for different rolling stock applications, such as infotainment, transportation cellular router, video server, and video surveillance.

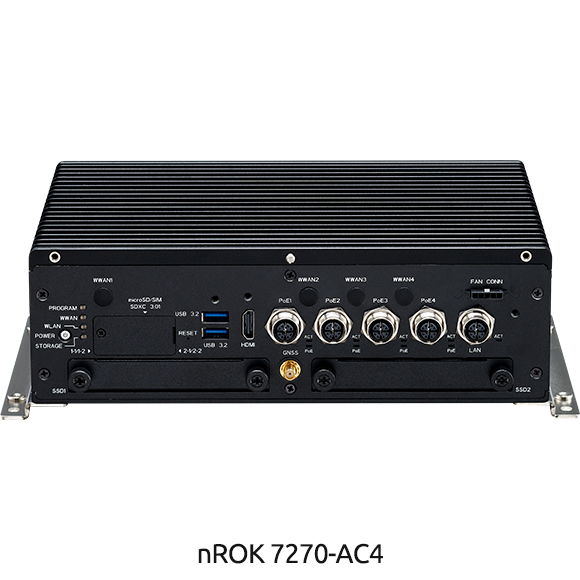

nROK 7270-AC4 (P/N: 10A00727000X0)
System bare-bone. Intel® 12/13th Gen CPU with DDR5, DC input 24/36V (w/o isolation), 1 x LAN M12 X-coded, 4 x PoE M12
X-coded, 2 x CAN FD

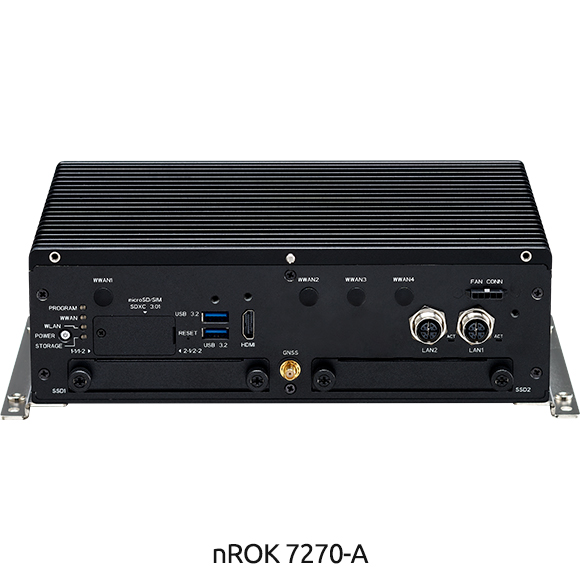

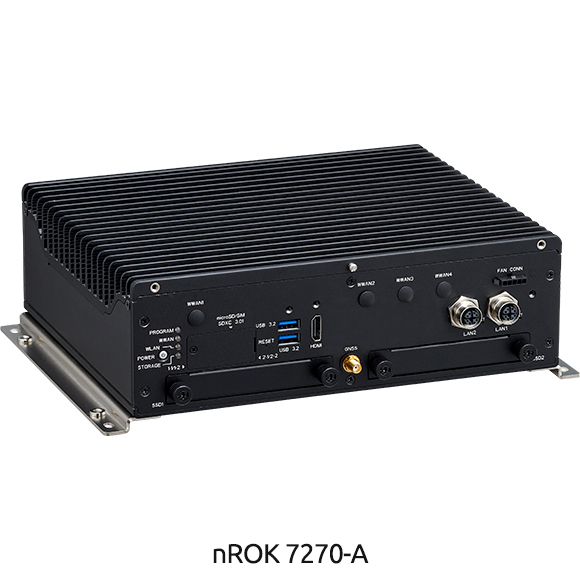

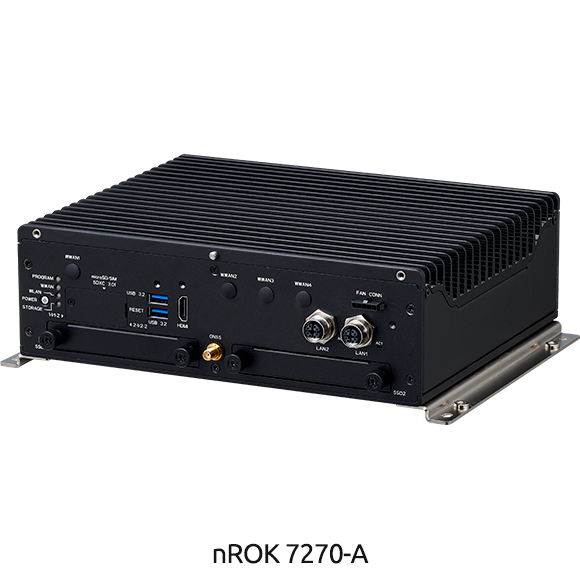

nROK 7270-A (P/N: 10A00727001X0)
System bare-bone. Intel® 12/13th Gen CPU with DDR5, DC input 24/36V (w/o isolation), 2 x LAN M12 X-coded, 2 x CAN FD
(Optional) VIOD-WWB4S-01 5G/Wi-Fi expansion board kit for nROK 7270 (P/N: 88A00727000X0)
Additional expansion:
– 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0), BOM optional M.2 2230 Key E socket (USB 2.0, PCIe 3.0)
– 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 1 x external dual nano-SIMs
(Optional) VIOD-L1M8P-01 PoE expansion board kit for nROK 7270 (P/N: 88A00727001X0)
Additional PoE port:
– 8-port LAN M12 X-coded, 10/100/1000 Mbps Ethernet Switch GbE, PoE 802.3 af/at, max. 60W (isolation)
(Optional) VIOD-LTM2-W01 10GbE expansion board kit for nROK 7270 (P/N: 88A00727002X0)
Additional 10GbE port and expansion:
– 2-port 10GbE M12 X-coded
– 1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 2 x external dual nano-SIMs
– 1 x Full size mini-PCIe socket (USB 2.0, PCIe 3.0), BOM optional 1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 1) for LTE/5G NR module with 2 x external dual nano-SIMs
