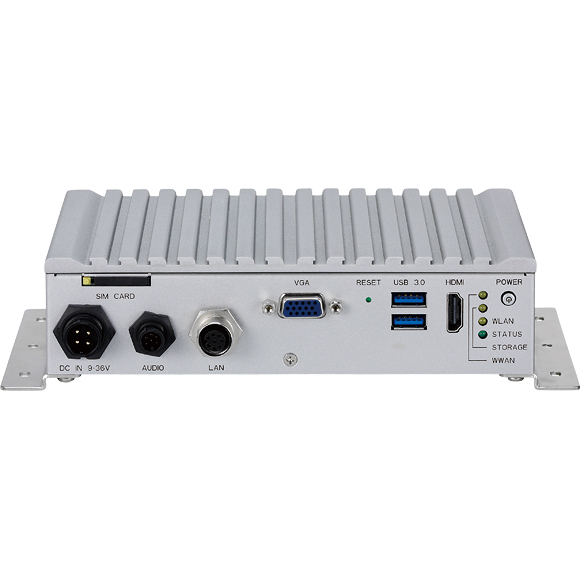

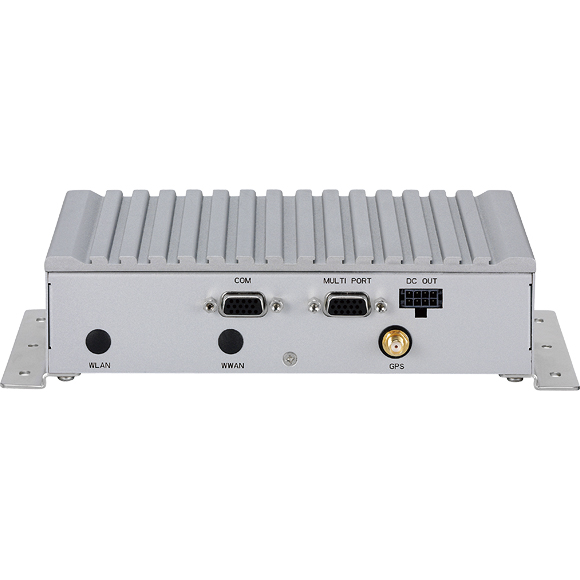

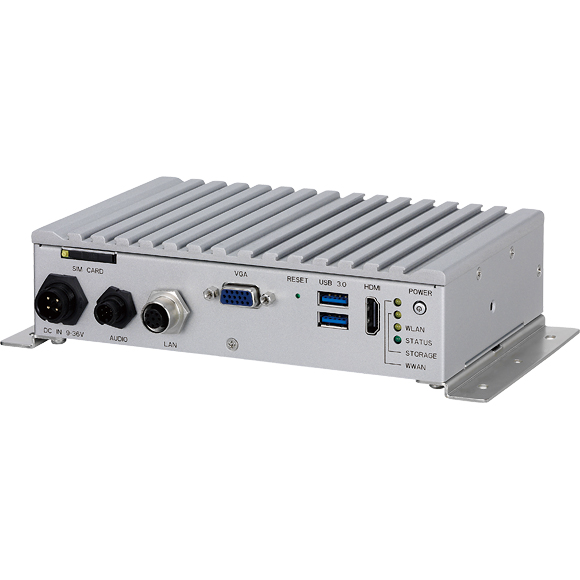

Intel Atom® x5-E3930 processor Fanless Railway Computer with EN50155 Conformity
Main Feature:
- Compact and fanless design
- Built-in GPS receiver
- Variety of wireless communication options
- Smart power management with Ignition on/off delay via software control and low voltage protection
- Wide range DC input from 9~36V
- EN50155 Class OT4 conformity
- Compliance to EN45545-2
- 5 x RS232 and 2 x RS485
nROK 1020, a compact, rugged and entry-level railway computer with Intel Atom® x5-E3930 processor dual core 1.8GHz, is designed for the harsh railway related applications. Because of the compact design, it is easy to be located without compromising its features.
Adopting lock concept, LAN, Power-in and Audio, are all designed against vibration and shock impact. An advanced GPS receiver supports GPS/Gloness/QZSS/Galileo/Beidou. Thanks to 2 mini-PCIe socket, nROK 1020 is perfectly suited for wireless applications, such as WLAN and WWAN data and voice transmission. With external SIM socket, it allows users to access SIM card conveniently. 12VDC output can be provided for external display with easy power wire arrangement. nROK 1020 is very suitable for Passenger Information System, Automatic Fare Collections and digital radio data/voice transmission applications.
nROK 1020-A (P/N: 10V00102002X0)
Intel Atom® x5-E3930 processor 1.8GHz with 4GB DDR3L, U-blox GPS module, GPS antenna, EN50155 Class TX (24VDC w/o isolation)
