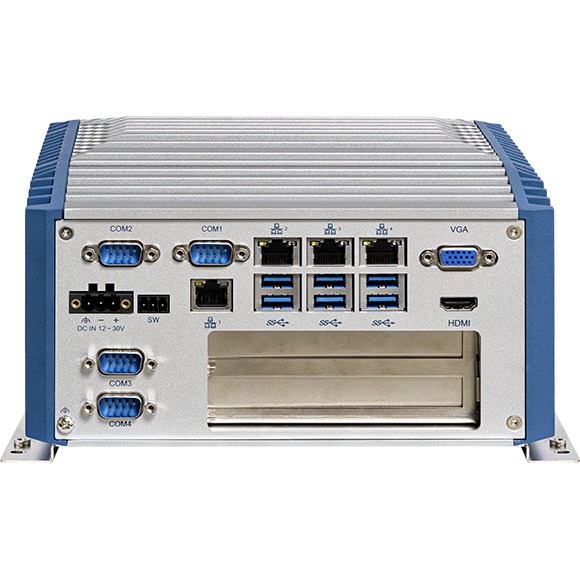

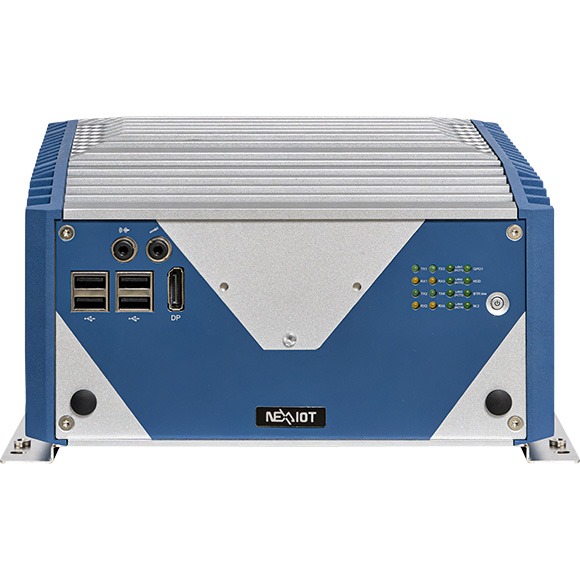

NISE 3910E16/E2/P2/P2E
- Support 12/13th Gen Intel® Core™ i3/i5/i7/i9 LGA1700 socket type embedded processor
- Intel® Q670E PCH
- Support 2 x DDR5 SO-DIMM socket, up to 64GB
- Four Intel® i226-IT LAN ports, support WoL, teaming, and PXE
- 1 x DP, 1 x HDMI, and 1 x VGA with independent display
- 1 x M.2 3042/3052 Key B support LTE/5G module
- 1 x Outside accessible M.2 2242 Key M with PCIe x4, support NvME
- 6 x USB 3.2 Gen 1, 4 x USB2.0
- 2 x Isolated RS232/422/485 with auto-flow and 2 x RS232
- 1 x mini-PCIe slot, support optional Wi-Fi, 3.5G, 4G LTE
- 1 x 2.5” SATA HDD/SSD (additional 1 x 2.5” SATA upon request)
- TPM 2.0 default onboard
Integrated with 12th & 13th Gen Intel® Core™ i9/i7/i5/i3 processors, NISE 3910 series is the fanless PC designed for industrial automation and edge computing which demand high CPU and graphics performance. NISE 3910 series supports up to 64G DDR5 memory and have several options on storage devices like M.2, HDD or SSD, and mSATA. NISE 3910 series supports wide range of DC input from +12V to 30V DC input, and can be operated in an extended operating temperature range between -20 to 60 Celsius degree. For extended module availability, NISE 3910 series also designed one internal mini-PCIe sockets to support IoT wireless connectivity applications (support optional Wi-Fi, 3.5G, 4G LTE modules), also 5G module via M.2 3052 Key B.
NISE 3910E16 (P/N: 10J00391002X0)
Intel® 12/13th Gen Core™ i9/i7/i5/i3 fanless system with one PCIe x16 expansion
NISE 3910E2 (P/N: 10J00391001X0)
Intel® 12/13th Gen Core™ i9/i7/i5/i3 fanless system with two PCIe x4 expansions
NISE 3910P2 (P/N: 10J00391003X0)
Intel® 12/13th Gen Core™ i9/i7/i5/i3 fanless system with two PCI expansions
NISE 3910P2E (P/N: 10J00391004X0)
Intel® 12/13th Gen Core™ i9/i7/i5/i3 fanless system with one PCI & one PCIe x4 expansions
24V, 120W AC to DC power adapter w/o power cord (P/N: 7400120029X00)
24V, 180W AC to DC power adapter w/o power cord (P/N: 7400180012X00)
| Date | Description | Version | OS | Download |
|---|---|---|---|---|
| 2024-05-29 | audo | Windows | ||
| 2024-05-29 | Chipset | Windows | ||
| 2024-05-29 | Intel_CSME_ADL | Windows | ||
| 2024-05-29 | Intel_Graphics | Windows | ||
| 2024-05-29 | Intel_HID_Event_Filter | Windows | ||
| 2024-05-29 | Intel_Serial_IO | Windows | ||
| 2024-05-29 | NDIS_Win | Windows | ||
| 2024-05-29 | RAID | Windows |
