NISE 3900E2/P2/P2E
NISE 3900E2/P2/P2E
8th/9th Generation Intel® Core™ i7/i5/i3 LGA Fanless System with Expansion
Main Feature:
- Support 8th & 9th generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Intel® Q370 PCH
- Support 1 x 2.5″ SATA HDD

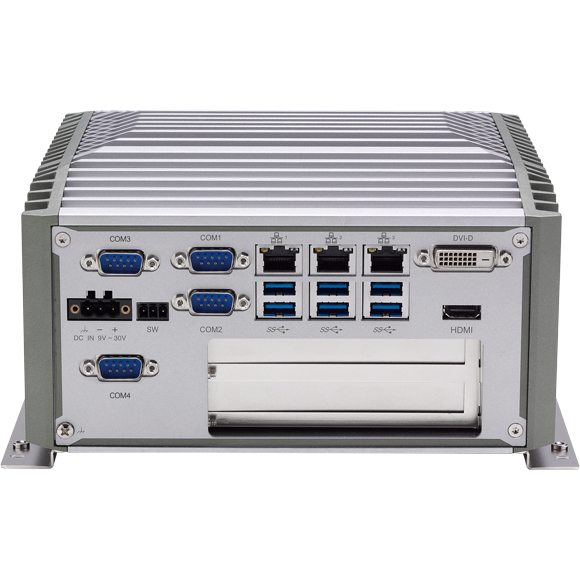

- 1 x DVI-D, 1 x DP, and 1 x HDMI® with independent display support
- Three Intel® GbE LAN ports; support WoL, teaming and PXE

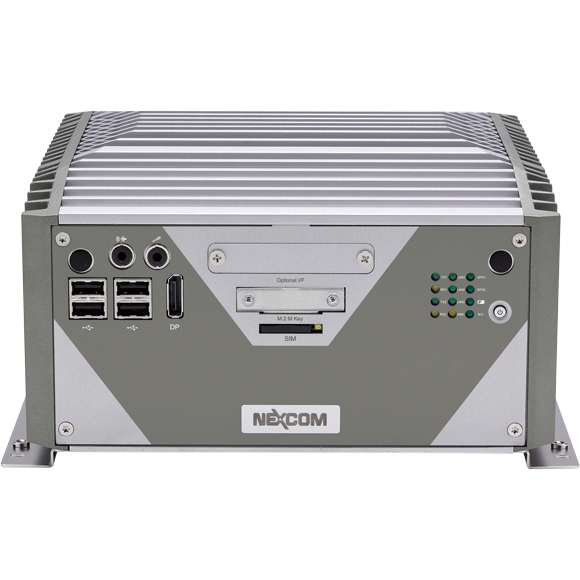

- 1 x External M.2 socket and 1 x SIM card socket
- 6 x USB 3.1 Gen 1, 4 x USB 2.0
- 2 x RS232/422/485 with auto flow control & 2 x RS232
- 1 x Internal mini-PCIe socket support optional Wi-Fi/3.5G/4G LTE
- Support +9V to 30VDC input; ATX power mode
- 2 x PCI or PCIe x4 expansions

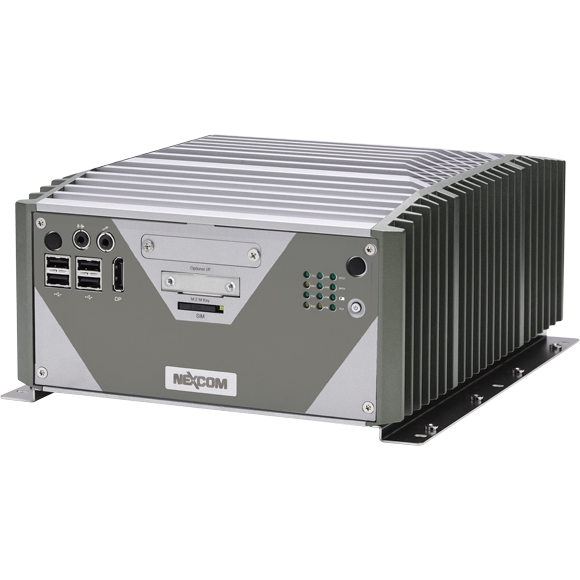

Integrated with 8th/9th generation Intel® Core™ i7/i5/i3 processors, NISE 3900 series is the fanless PC designed for industrial applications which demand high CPU and graphics performance. NISE 3900 series supports up to 16G DDR4 memory and have several options on storage devices like M.2, HDD or SSD. NISE 3900 series supports wide range of DC input from +9V to 30V DC input, and can be operated in an extended operating temperature range between -5 to 55 Celsius degree. For extended module availability, NISE 3900 series also designed one internal mini-PCIe sockets to support IoT wireless connectivity applications (support optional Wi-Fi, 3.5G, 4G LTE modules).
NISE 3900E2 System (P/N: 10J00390001X0)
8th & 9th generation Intel® Core™ i7/i5/i3 fanless system with two PCIe x4 expansions
NISE 3900P2 System (P/N: 10J00390002X0)
8th & 9th generation Intel® Core™ i7/i5/i3 fanless system with two PCI expansions
NISE 3900P2E System (P/N: 10J00390003X0)
8th & 9th generation Intel® Core™ i7/i5/i3 fanless system with one PCI and one PCIe x4 expansion
24V, 120W AC to DC power adapter w/o power cord (P/N: 7400120029X00)
