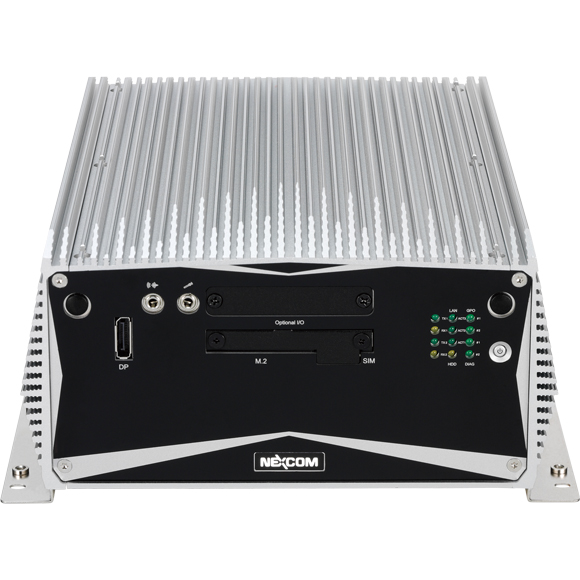

NISE 3800E2/P2/P2E
NISE 3800E2/P2/P2E
6th & 7th Generation Intel® Core™ i7/i5/i3 LGA Fanless System with Expansion
Main Feature
- Support 6th & 7th Generation Intel® Core™ i7/i5/i3 LGA socket type embedded processor
- Intel® Q170 PCH
- Support 1 x 2.5” SATA HDD
- 1 x DVI-D, 1 x DP, and 1 x HDMI with independent display support
- Three Intel® GbE LAN ports; support WoL, teaming and PXE
- 1 x External M.2 2242 Key M socket and 1 x SIM card socket
- 4 x USB 3.0 and 2 x USB 2.0
- 2 x RS232/422/485 and 2 x RS232
- 2 x Internal mini-PCIe sockets support optional Wi-Fi/3.5G/mSATA/Fieldbus
- Support +9V to 30VDC input; ATX power mode
- 2 x PCI or PCIe x4 expansions
Integrated with 6th & 7th Generation Intel® Core™ i7/i5/i3 processors, NISE 3800 series is the fanless PC designed for industrial applications which demand high CPU and graphics performance. NISE 3800 supports up to 32G DDR4 memory and have several options on storage devices like M.2, HDD, mSATA or SSD. NISE 3800 supports wide range of DC input from +9V to 30V DC input, and can be operated in an extended operating temperature range between -5 to 60 Celsius degree (uses wide temperature memory and storage). For extended module availability, NISE 3800 also designed two internal mini-PCIe sockets to support IoT applications (integrate with optional GbE LAN, Wi-Fi, 3.5G module) and common communication applications (integrate with optional GPIO, RS232/422/485 module).
NISE 3800E2 System (P/N: 10J00380002X0, P/N: 10J00380002XE)
6th & 7th Generation Intel® Core™ i7/i5/i3 fanless system with two PCIe x4 expansions
NISE 3800P2 System (P/N: 10J00380005X0, P/N: 10J00380003XE)
6th & 7th Generation Intel® Core™ i7/i5/i3 fanless system with two PCI expansions
NISE 3800P2E System (P/N: 10J00380004X0, P/N: 10J00380004XE)
6th & 7th Generation Intel® Core™ i7/i5/i3 fanless system with one PCI and one PCIe x4 expansion
24V, 120W AC to DC power adapter w/o power cord (P/N: 7400120029X00, Lite-On)
