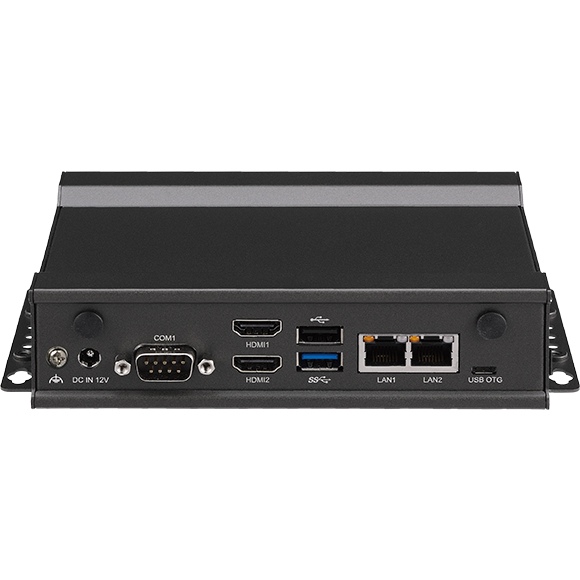

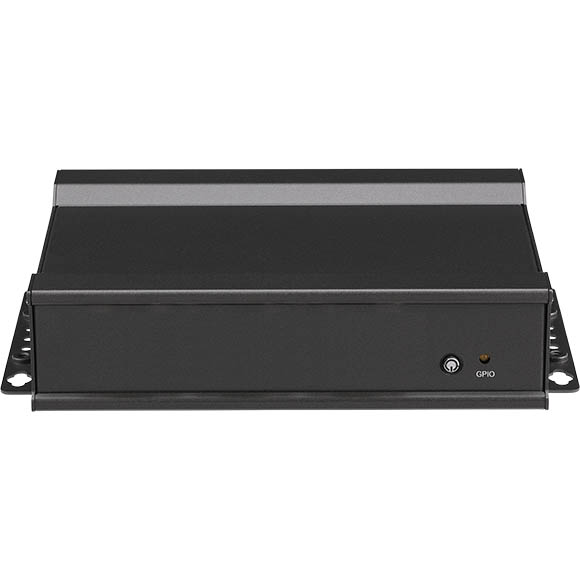

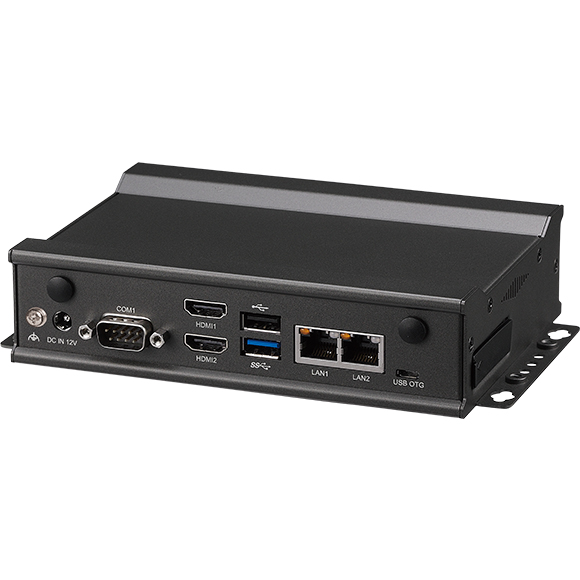

NDiS B116
NDiS B116
Digital Signage Player Powered by ARM® Cortex®-A72 Dual Core and Cortex®-A53 Quad Core Processor
Main Feature:
- Onboard Rockchip RK3399 ARM® Cortex®-A72 and Cortex®-A53
- 2 x 10/100/1000Mbps LAN Port
- 2 x HDMI 2.0, 1 x LVDS, 1 x eDP, 1 x MIPI DSI
- 2 x USB 2.0, 1 x USB 3.0, 1 x USB 2.0 OTG
- 1 x RS232/422/485
- 1 x mini-PCIe socket for optional Wi-Fi/3.5G/LTE modules
- Fanless and slim design
- Support Android
Powered by ARM® Cortex®-A72 Dual Core and Cortex®-A53 Quad Core, NDiS B116 can play rich multi-media contents with low power consumption.
NDiS B116 is enclosed in a compact chassis and can be easily integrated to display devices, such as LCD TV or PDOat site installation with HDMI display output (up to HDMI 2.0 support 4K2K 60Hz), Giga LAN. NDiS B116 is suitable as an entry level digital signage player for advertising, messaging, and brand promotion.
NDiS B116 (P/N: 10W00B11600X0)
Rockchip RK3399 ARM® Cortex®-A72 Dual Core and Cortex®-A53 Quad Core, onboard 2G LPDDR4 and 8G eMMC, 1 x COM
NDiS B116-4G-16G (P/N: 10W00B11601X0)
Rockchip RK3399 ARM® Cortex®-A72 Dual Core and Cortex®-A53 Quad Core, onboard 4G LPDDR4 and 16G eMMC, 4 x COM
