NBP 1465
NBP 1465
PICMG1.3 Half Size, 14 x Slots Backplane for 4U Chassis with 1 SHB Slot,1 x PCIe x16, 1 x PCIe x8, 3 x PCIe x4, 1 x PCIe x1, 5 x PCI
- Main Feature
- 14 x Slots
- 1 x PCIe x16
- 1 x PCIe x8
- 3 x PCIe x4
- 1 x PCIe x1
- 5 x PCI
- Dimension: 316.9 x 181.1(mm)
- Power connector supports:
– 24-pin ATX power connector
– 8-pin ATX standard power connector - Support ±12V/5V/3.3V power connector

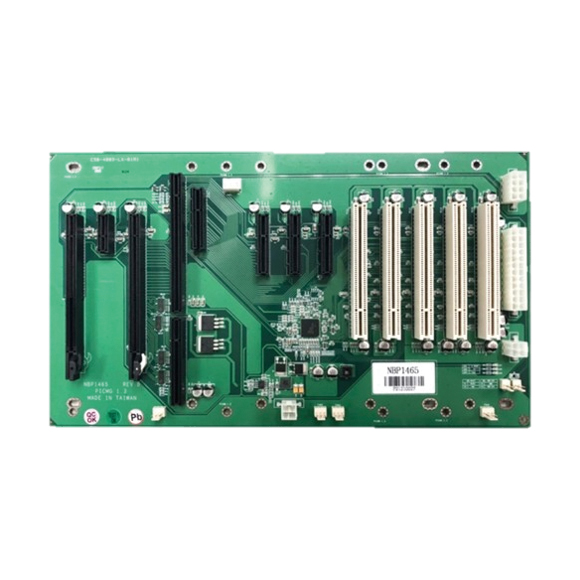

The NBP 1465 is a 14 x Slots backplane with 1 x SHB slot,1 x PCIe x16, 1 x PCIe x8, 3 x PCIe x4, 1 x PCIe x1 and 5 x PCI slots. NBP 1465 follows PICMG 1.3 platform specifications and supports ATX power supply.
NBP 1465 (P/N: 79N0146501X00)
14 x Slots backplane for PICMG1.3 CPU board, 1 x SHB slot ,1 x PCIe x16, 1 x PCIe x8, 3 x PCIe x4, 1 x PCI e x1, 5 x PCI
Compliance with PICMG1.3 CPU board
PEAK 980-Q (P/N: 10P00098000X0)
PEAK 980-H (P/N: 10P00098001X0)
