IPPC 1680P
15.6” TFT HD 16:9 Heavy Industrial Panel PC 6th Generation Intel® Core™ i5-6300U, 2.40 GHz Multi-Touch Screen, 8GB DDR3L, 4 x USB, 3 x COM
- Main Feature
- Metal housing with robust aluminum front zero bezel for harsh environment
- 10 points P-Cap multi-touch with zero bezel flush front design

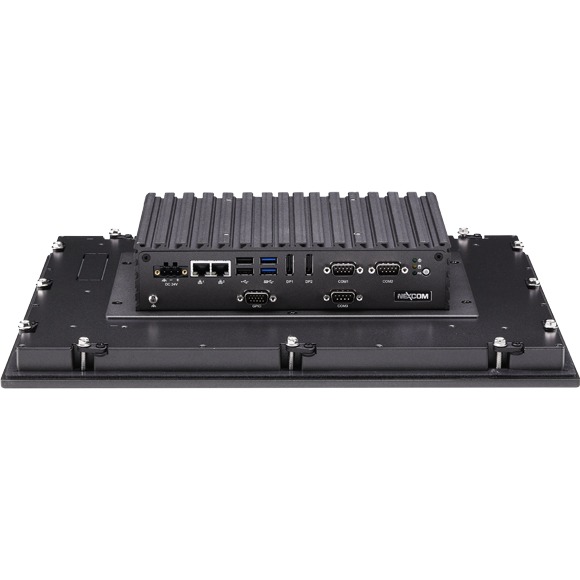

- Dual GbE/2nd DisplayPort/Dual USB 3.0 & USB 2.0
- 1 x mini-PCIe sockets, 1 x M.2, 1 x RS232/422/485
- DDR3L 8GB/2.5” HDD bracket
- IP66 compliant front panel
- Mounting support: panel/wall/stand/VESA 100mm x 100mm
- DC power input 24VDC

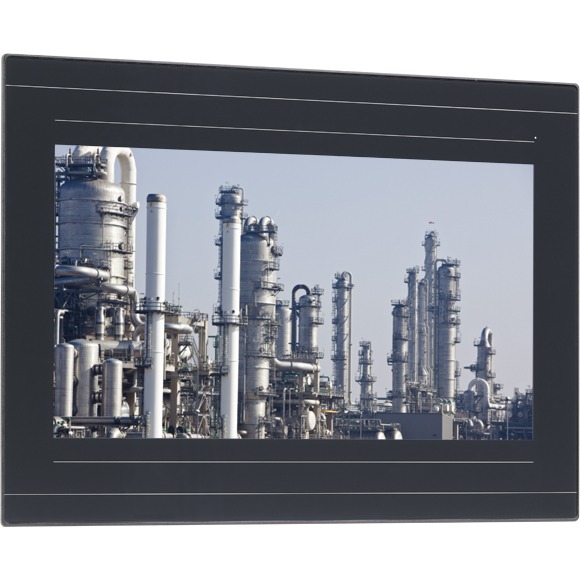

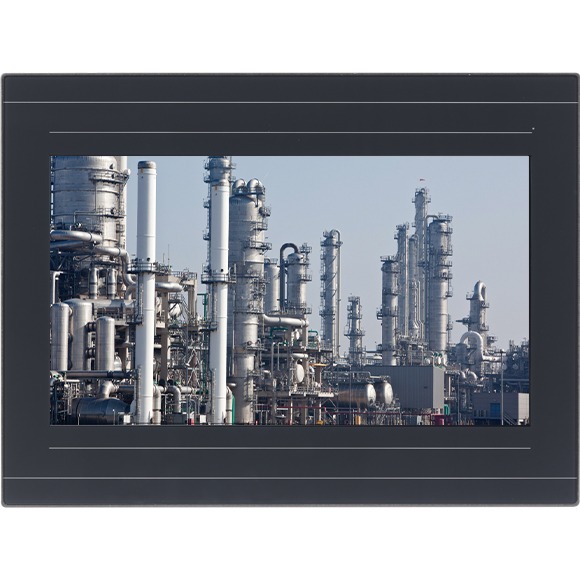

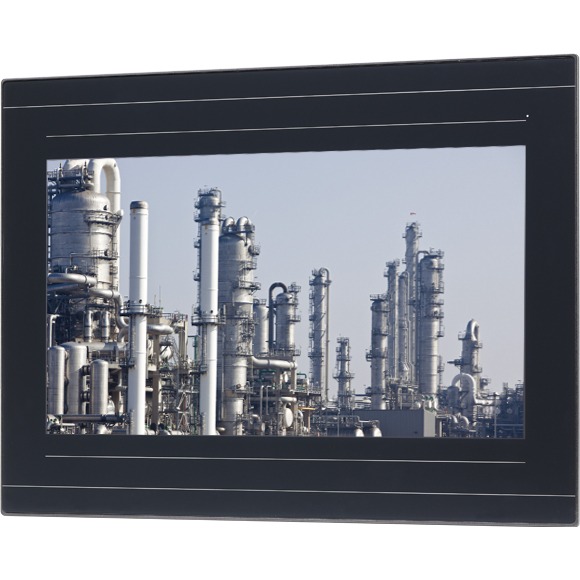

The 15.6” fanless panel PC IPPC 1680P incorporating an industrial motherboard is intended for versatile industrial applications. The panel PC has a touch screen LED backlight LCD panel with 1366 x 768 (HD) resolution. The front panel which adopts flush design and complies with IP66 standard makes it the perfect fit in industrial applications.
The IPPC 1680P supports WLAN expansion and others via dual Gigabit Ethernet connectors, one mini-PCIe slot and one M.2 slot. With support for DC power input of 24VDC, IPPC 1680P can gain a strong foothold in industrial field and machine devices. In addition, IPPC 1680P can hook 2nd display via a DisplayPort for dual independent display. IPPC 1680P has one adjustable RS232/422/485 ports.
Barebone
IPPC 1680P-6100U (P/N: 10II1680P00X0)
15.6” HD LED Backlight Touch Panel PC, 6th generation Intel Core i3-6100U Processor, 2.30GHz, P-Cap Touch Screen, 8GB DDR3L
IPPC 1680P-6300U (P/N: 10II1680P01X0)
15.6” HD LED Backlight Touch Panel PC, 6th generation Intel Core i5-6300U Processor, 2.40GHz, P-Cap Touch Screen, 8GB DDR3L
Options
24V, 120W AC/DC power adapter w/o power cord (P/N: 7400120023X00)
| Date | Description | Version | OS | Download |
|---|---|---|---|---|
| 2020-03-09 | Chipset | Windows | ||
| 2020-03-09 | Fintek patch file | Windows | ||
| 2020-03-09 | Graphics | Windows10 | ||
| 2020-03-09 | Graphics | Win 7/8.1 | ||
| 2020-03-09 | LAN | Win 10 | ||
| 2020-03-09 | LAN | Windows |
