IPPC 1040P
IPPC 1040P
10.1” TFT WXGA 16:9 Heavy Industrial Panel PC with Intel® Celeron® Quad Core Processor J1900, up to 2.42GHz, Multi-Touch Screen, 4GB DDR3L, 3 x USB, 2 x COM
Main Feature:
- Intel® Celeron® quad core processor J1900, up to 2.42GHz, 2M L2 cache
- Metal housing with robust aluminum front zero bezel for harsh environment
- 10 points P-Cap multi-touch with zero bezel flush front design
- Dual GbE/2nd display-VGA/Line-out
- 3 x USB/2 x mini-PCIe sockets/1 x CFast/2 x RS232/422/485
- DDR3L 4GB/2.5” HDD bracket
- IP66 compliant front panel
- Mounting support: panel/wall/stand/VESA 100mm x 100mm
- Wide range power input 12~30VDC

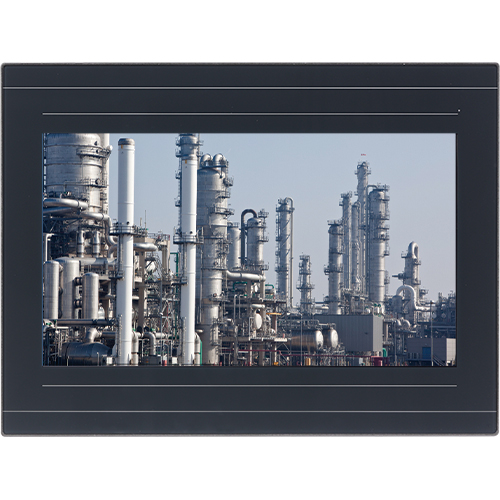

The 10.1” fanless panel PC IPPC 1040P incorporating an industrial motherboard is intended for versatile industrial applications. The panel PC has a touch screen LED backlight LCD panel with 1280 x 800 (WXGA) resolution. The front panel which adopts flush design and complies with IP66 standard makes it the perfect fit in industrial applications.

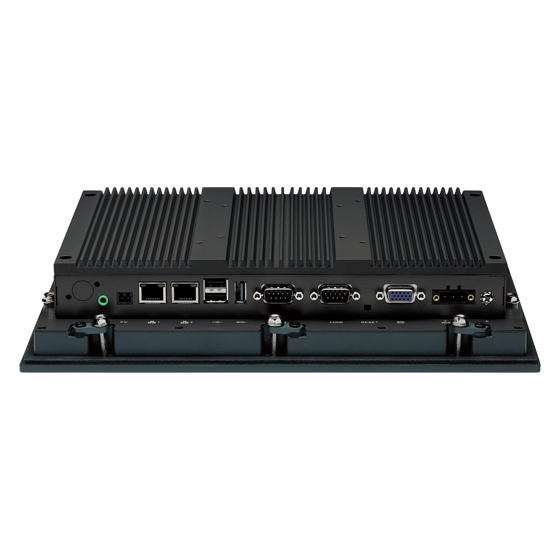

The IPPC 1040P supports WWAN/WLAN expansion and others via dual Gigabit Ethernet connectors, two mini-PCIe slots and one SIM card holder. With support for wide power input of 12~30VDC, IPPC 1040P can gain a strong foothold in industrial field and machine devices. In addition, IPPC 1040P can hook 2nd display via a VGA port for dual independent display. IPPC 1040P has two isolated RS232/422/485 ports.
Barbone
IPPC 1040P-B (10II1040P05X0)
10.1” WXGA LED backlight touch panel PC, Intel® Celeron® Quad Core processor J1900, up to 2.42GHz, touch screen, 4GB DDR3L, 2 x RS232/422/485 Intel® I210-IT Gigabit LAN
IPPC 1040P-B0 (10II1040P09X0)
10.1” WXGA LED backlight touch panel PC, Intel® Celeron® Quad Core processor J1900, up to 2.42GHz, touch screen, 4GB DDR3L, 2 x RS232/422/485 Intel® I210-AT Gigabit LAN
Options
12V, 60W AC/DC power adapter w/o power cord (P/N: 7400060062X00)
