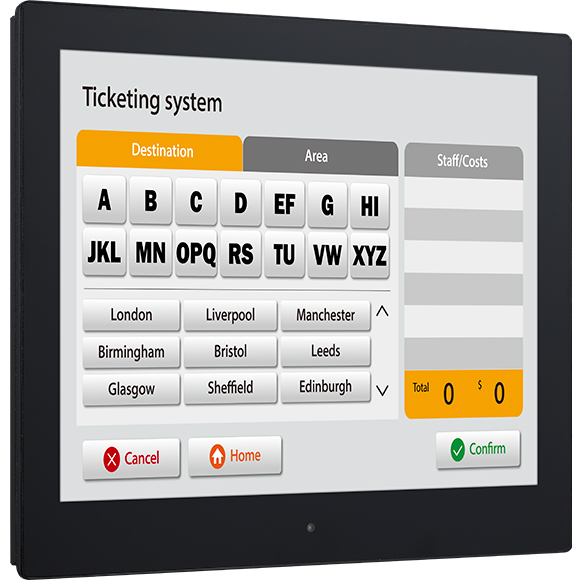

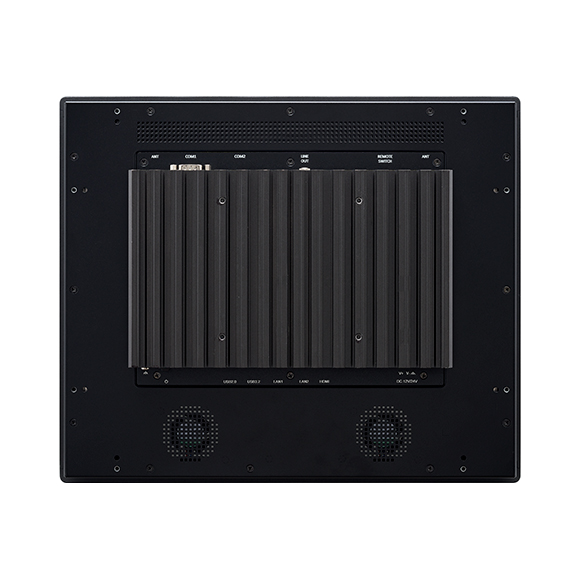

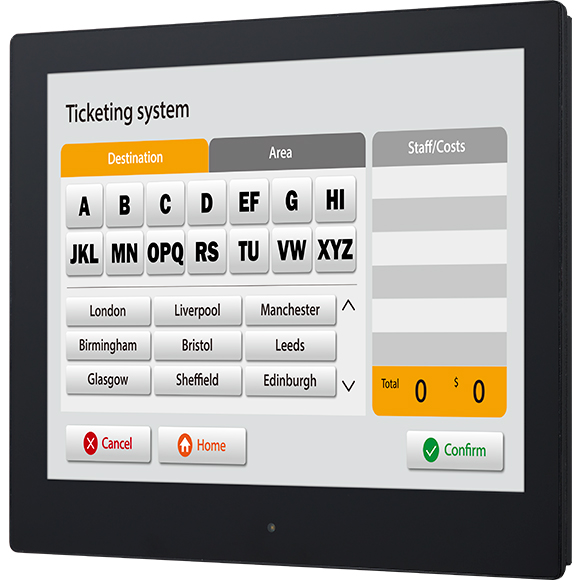

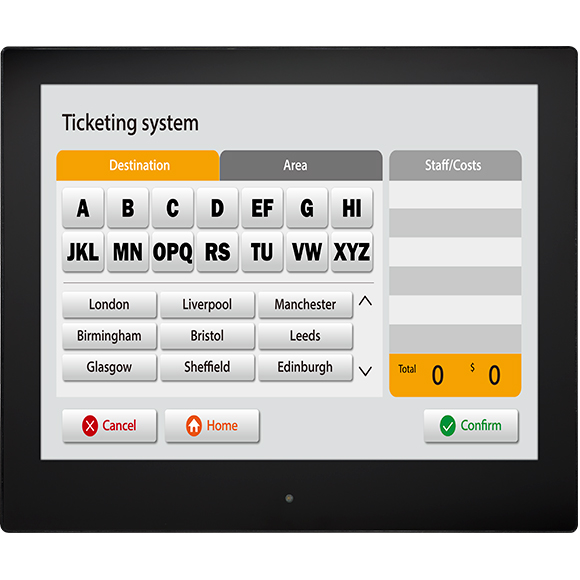

HPPC 15-10X7211
15” TFT XGA 4:3 Slim Bezel, High Brightness Panel PC Powered by Intel Atom® X7211RE Processor
Main Feature:
- 15” 4:3 ratio 1800 nits sunlight readable panel
- Optical Bonding with AF, AG Anti-UV & IR treatment
- Embedded light sensor for auto-dimming
- 2 x PWM Smart Fan
- Intel Atom® x7211RE Processor 6M Cache, up to 3.2 GHz
- 1 x DDR4 SO-DIMM socket, up to 32GB
- Expansion : 1 x M.2 Key M, 1 x Mini PCIe
- Support wide range power input: DC 12V to 24V
The HPPC15-10X7211, powered by Intel Atom® X7211RE, offers industrial competitiveness by providing high performance, low power consumption, and real-time processing in harsh environmental conditions. Featuring a G-series 10-point PCAP touch panel with 1800 nits luminance, the HPPC15-10X7211 utilizes optical bonding with Anti-UV, AF, AG coating and IR treatment, along with IP65-rated protection for enhanced durability. Its built-in light sensor and smart fan control function optimize energy efficiency and enable brightness autodimming, extending the product’s lifespan. The HPPC15-10X7211 supports 12V to 24V power input and wide-range operating temperature of -20~60°C, delivering an excellent user experience for semi-outdoor applications, including automated parking system, recycling machine and parking payment machine.
HPPC 15-10X7211(P/N:10W60HPPC00X0)
HPPC 15-10X7211 15” TFT 1800 nits Panel PC, P-CAP, Optical Bonding,
w/ XPPB-10X7211
Panel mount kit (P/N: 5061711301X00)
Panel Mount BKT for XPPC24-100 SIN SUPER CIRCLE 30x20x6mm
SECC T=1.6mm
