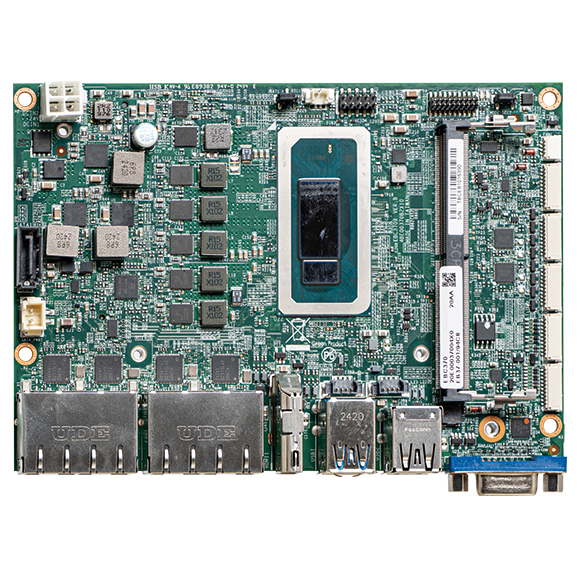

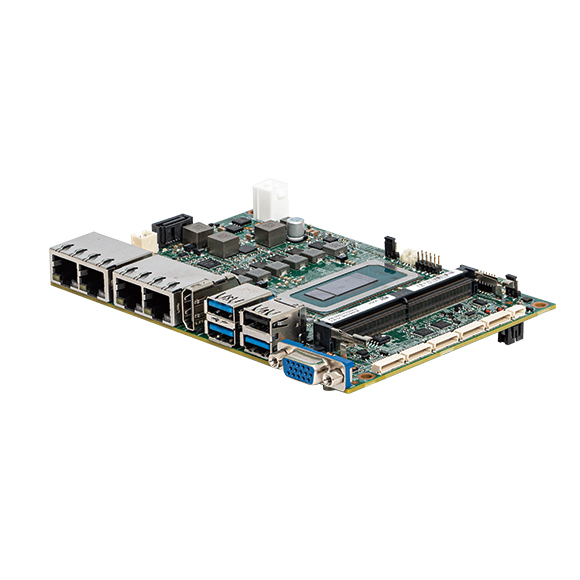

EBC 370/EBC 370X
EBC 370/EBC 370X
3.5″ SubCompact Board with 13th Gen Intel® Core™ Processor
Main Feature
- Intel® 13th Gen Intel® Core™ i7 processor, 15W, 28W
- 1 x DDR5 5200 SO-DIMM, non-ECC, up to 32GB
- 1 x VGA, 1 x HDMI®, supports multiple displays
- TPM 2.0
- 24V DC IN
- 4 x 2.5 GbE LAN
- 3 x USB 3.2 Gen2, 3 x USB 2.0, 2 x RS-232, 2 x RS-232/485/422, 1 x SATA 3.0 , 16-bit GPIO (8 IN , 8 OUT)
- 1 x MXM slot (PCIe x4 LANS for MXM GPU card support)
- 1 x M.2 Key B , 1 x M.2 Key M
The EBC370/EBC370X is a 3.5” single board computer (SBC) powered by 13th Gen Intel® Core™ processors. It features a SO-DIMM socket, supporting up to 32GB of DDR5 5200MHz memory with non-ECC support, along with integrated Intel® Iris® Xᵉ graphics.
Designed for performance and versatility, the EBC370/EBC370X includes an MXM slot, accommodating graphics accelerator cards or I/O expansion cards to meet diverse AI and visual needs.
With a wide operating temperature ranging from -20°C to 70°C, the EBC370X sustains in harsh environments, making it ideal for outdoor and semioutdoor embedded applications including kiosks, home automation, and thin clients
Barebone
EBC370 (P/N: 10E00037004X0)
EBC370X (P/N: 10E00037003X)
Packing List
1 x main board
1 x COM port cable (P/N: 60233SIO62X00)
1 x SATA cable (P/N: 60233AT128X00)
Optional Accessories
Power Adapter (P/N: 7400120026X00)
Adapter FSP: FSP120-AAAN3 (120W 24V/5A, W/3PIN Phoenix contact)
DC POWER CABLE (P/N: 603POW0391X00)
POWER cable ST: ST-1906022 ATX 2x2P PIT: 4.2mm TO
TERMINAL BLOCKS 3P PIT: 5.08mm L=230mm
Cooler (P/N: 5050200248X00)
EBC370 COOLER KIT 146×101.7×36.4mm
