EBC 356
EBC 356
3.5” SBC with 4 core/2 core Intel® Pentium®/Celeron® Processors N3000 SoC Support DDR3L/M.2 module/4 x USB 3.0/2 x SATA 3.0/3 x HDMI interfaces
Main Feature:
- On-board Intel® Pentium®/Celeron® Processors N3000 product family (codename Braswell)
- Supports dual channel DDR3L 1600MHz, 2 x SO-DIMM, up to 8GB system memory
- 3 x HDMI connector, 2 of 3 HDMI resolution support 4K/2K
- 2 x SATA 3.0/ 4 x USB 3.0/M.2 module/ 4-in & 4-out GPIO, Mic-in , Speak out
- Support AT/ATX mode and single +12VDC input

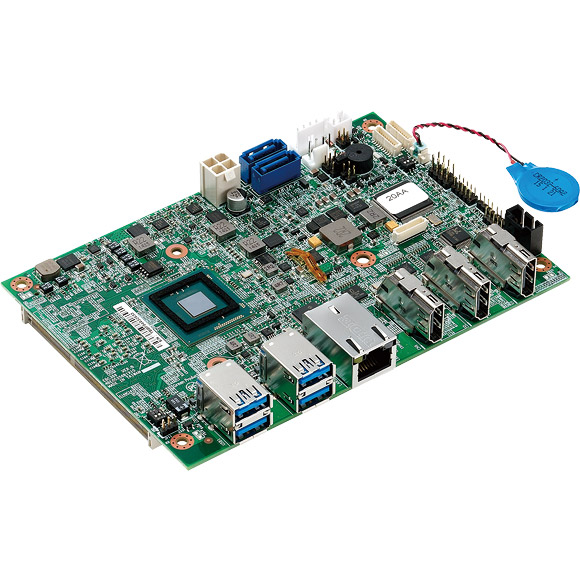

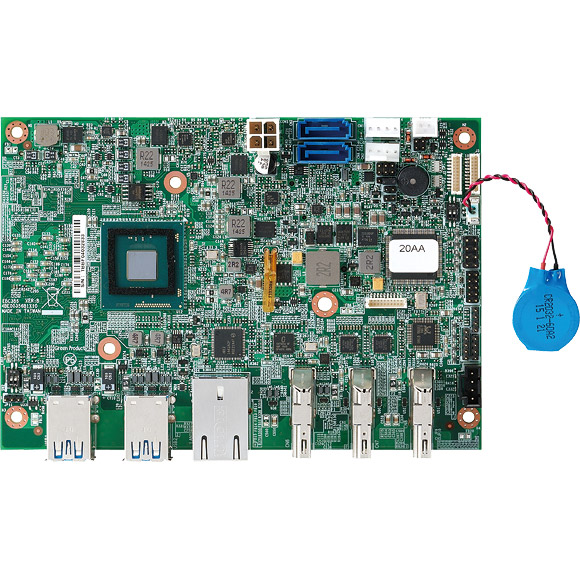

EBC 356 is a 3.5” SBC embedded board equipped with Intel® Pentium®/Celeron® Processors N3000 product family to provide a high performance with lower power consumption structure for any application, which supports DDR3L 1600 memory, along with integrated Intel® Gen. 8 Graphics Engine enhanced Gfx & video, and support DX 11*. EBC 356 also provides two SATA 3.0, four USB 3.0 ports, one M.2 interfaces, and supports triple HDMI outputs.
EBC 356 (P/N: 10E00035600X0) RoHS Compliant (N3150)
Low power embedded board with 4 core Intel® Pentium®/Celeron® Processors N3000 product family SoC, support 2 x DDR3L/M.2 module/4 x USB 3.0/2 x SATA 2.0/GbE, HDMI interfaces
