CE-RL-01
CE-RL-01
The 13th Gen Intel® Core™ Processor Marine Fanless System
Main Feature:
- The 13th Gen Intel® Core™ i7/i5/i3/U300E processor
- 2 x DDR5 supported, up to 64GB Max
- 2 x M2 SATA and NVMe supported
- 4 x 2.5GbE RJ45 Ethernet
- 4 x DP++
- 1 x USB 3.2 Gen 2×1 (10Gbps) Type-C, with ALT mode
- 4 x USB 3.2 Gen 2×1 (10Gbps) Type-A
- 1 x RS-232/422/485 isolated
- 1 x Fan/buzzer external connector
- Support Intel® vPro and TPM 2.0 (vPro is not available for i3 SKU)
- Support 18V~31V DC in with 2X3 phoenix contact for dual power
redundancy and low-power monitor detection - Certificated CE / FCC Class A
- IEC60945/IACS E10 Maritime standards compliance
- Flexible IOs by requested
The CE-RL-01 is a fanless marine computer that complies with international marine standards including DNVGL-CG-0339, IEC 60945, and IACS E10. Powered by 13th Gen Intel® Core™ P processor, it delivers exceptional performance, robust reliability, and high integration for demanding maritime and offshore applications. The CE-RL-01 supports Windows 10, Windows 11, and Linux.

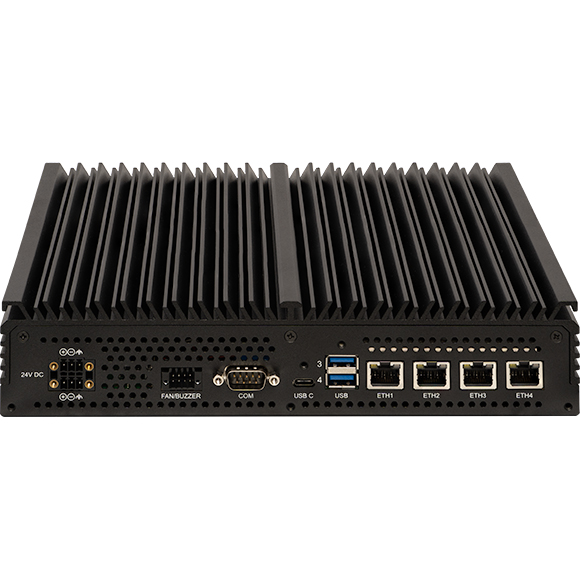

The CE-RL-01 comes with an isolated RS-232/422/485 port, 4 x Gigabit Ethernet LAN ports, 5 x USB ports, and supports multiple video outputs via DP++ and USB Type-C. To meet diverse customer needs, it supports a wide-range 18V~31V DC power input and an extended operating temperature range from 0°C to +55°C that ensures reliable operation in harsh marine environments.
CE-RL-01 I7 (P/N: 10Q0000CE11X1)
i7-1370PE, 16GB RAM, 256G M.2 SSD
CE-RL-01 I5 (P/N: 10Q0000CE12X1)
i5-1340PE, 16GB RAM, 256G M.2 SSD
CE-RL-01 I3 (P/N: 10Q0000CE15X1)
i3-1320PE, 16G RAM, 256G M.2 SSD
