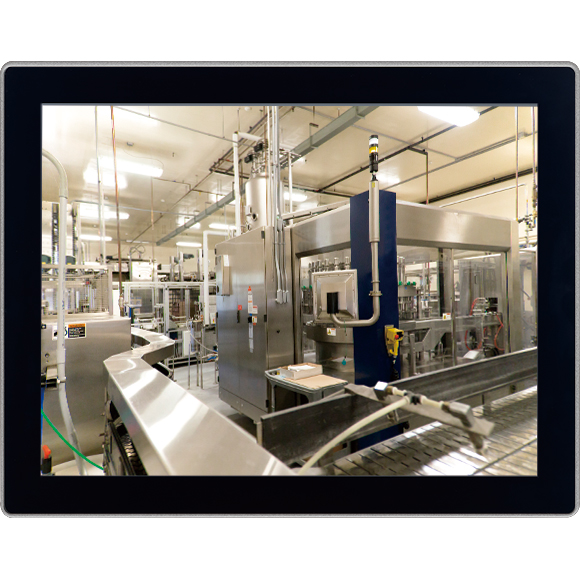

APPC 1240C-B01
APPC 1240C-B01
12.1” TFT XGA 4:3 Flush Panel PC with Intel® Celeron® J1900, up to 2.0GHz, Touch Screen, 4GB DDR3L, 3 x USB, 2 x COM
Main Feature
- 4:3 12.1” XGA fanless LED panel computer
- Intel® Celeron® J1900, Quad Core, low consumption CPU
- Flush panel by 5-wire touch screen with slim bezel
- Dual GbE/2nd display-VGA/Line-out

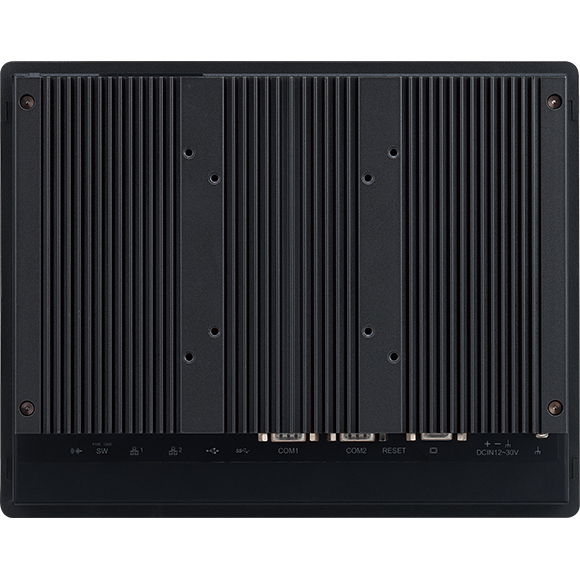

- 3 x USB/2 x mini-PCIe sockets/1 x CFast/2 x RS232/422/485
- DDR3L 4GB/2.5” HDD bracket
- IP65 compliant front panel
- Mounting support: panel/wall/stand/VESA 100mm x 100mm
- Wide range power input 12V~30VDC
The 12.1” XGA fanless panel PC APPC 1240C-B01 incorporating an industrial motherboard is intended for versatile industrial applications. APPC 1240C-B01 supports 1024 x 768 (XGA) resolution and 500-nit brightness. The front panel which adopts flush design and complies with IP65
standard makes it the perfect fit in industrial applications.
This APPC series supports WWAN/WLAN expansion and others via dual Gigabit Ethernet connectors, two mini-PCIe slots and one SIM card holder. With support for wide power input of 12~30VDC, this APPC series can gain a strong foothold in industrial field and machine devices. In addition, this APPC series can hook 2nd display via a VGA port for dual independent display. APPC 1240C-B01 has two isolated RS232/422/485 ports
Barebone
APPC 1240C-B01 (P/N: 10IA1240C01XE)
12.1” XGA LED backlight touch panel PC, Intel® Celeron® J1900 up to 2.0GHz, touch screen, 4GB DDR3L, 2 x RS232/422/485
Options
12V, 60W AC/DC power adapter w/o power cord (P/N: 7400060062X00)
