AIEdge-X®80
AIEdge-X®80
NVIDIA® Jetson Orin™ NX Edge AI Computing
Main Feature
- NVIDIA® Jetson Orin™ NX 16GB (100 TOPs)
- NVIDIA® Jetson Orin™ NX 8GB (70 TOPs)
- 1024-core NVIDIA® Ampere GPU with 32 Tensor Cores
- 4 x Intel® GbE LAN port
- 1 x M.2 2280 Key M for Storage,
- 1 x M.2 3042/3052 Key B for 5G / LTE
- 1 x full size Mini PCIe for WiFi / BT

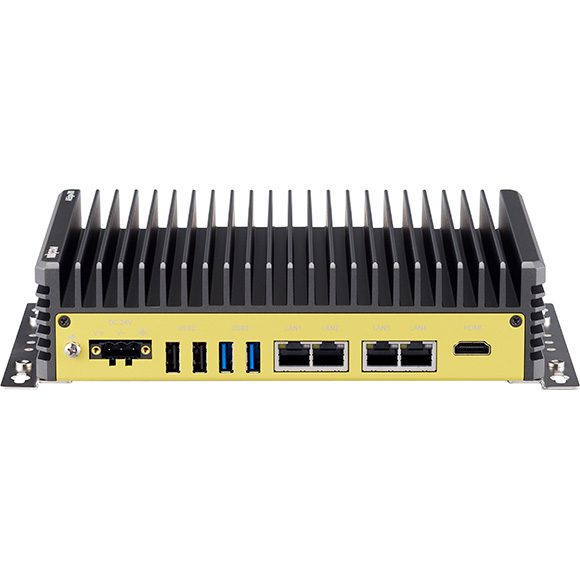

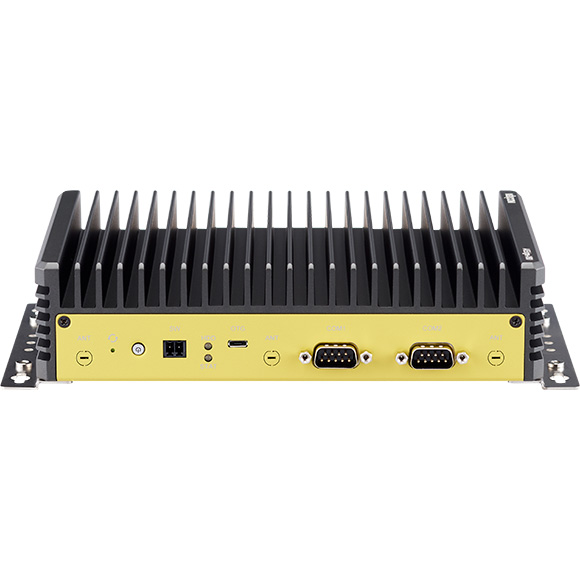

- 1 x HDMI®, 2 x COM port, 4 x USB, 1 x USB OTG
- Extended Operating Temperature -20 ~ 60 °C
- DC in 24V with 3 pin phoenix terminal block
Powered by NVIDIA® Jetson Orin™ NX system on module (SoM), it can support multiple AI application pipelines with NVIDIA® Ampere architecture GPU for deep learning and vision accelerators, AIEdge-X®80 is a fanless edge AI computer promises up to 100 TOPS of AI inference acceleration performance. This gives you up to 3X the performance of Jetson AGX Xavier™ and up to 5X the performance of Jetson Xavier™ NX. AIEdge-X®80 offers 1 x HDMI®, 2 x COM port, 2 x USB 3.2, and 2 x USB 2.0 ports. Thus, AIEdge-X®80 is dedicated for image AI processing system on object detection which can be utilized in sorting machine, security management, parcel tracking system, and traffic enforcement.
AIEdge-X®80-NX16 (P/N: 10W200X8000X0)
AI Edge computing with NVIDIA® Jetson OrinTM NX 16GB
AIEdge-X®80-NX8 (P/N: 10W200X8001X0)
AI Edge computing with NVIDIA® Jetson OrinTM NX 8GB
